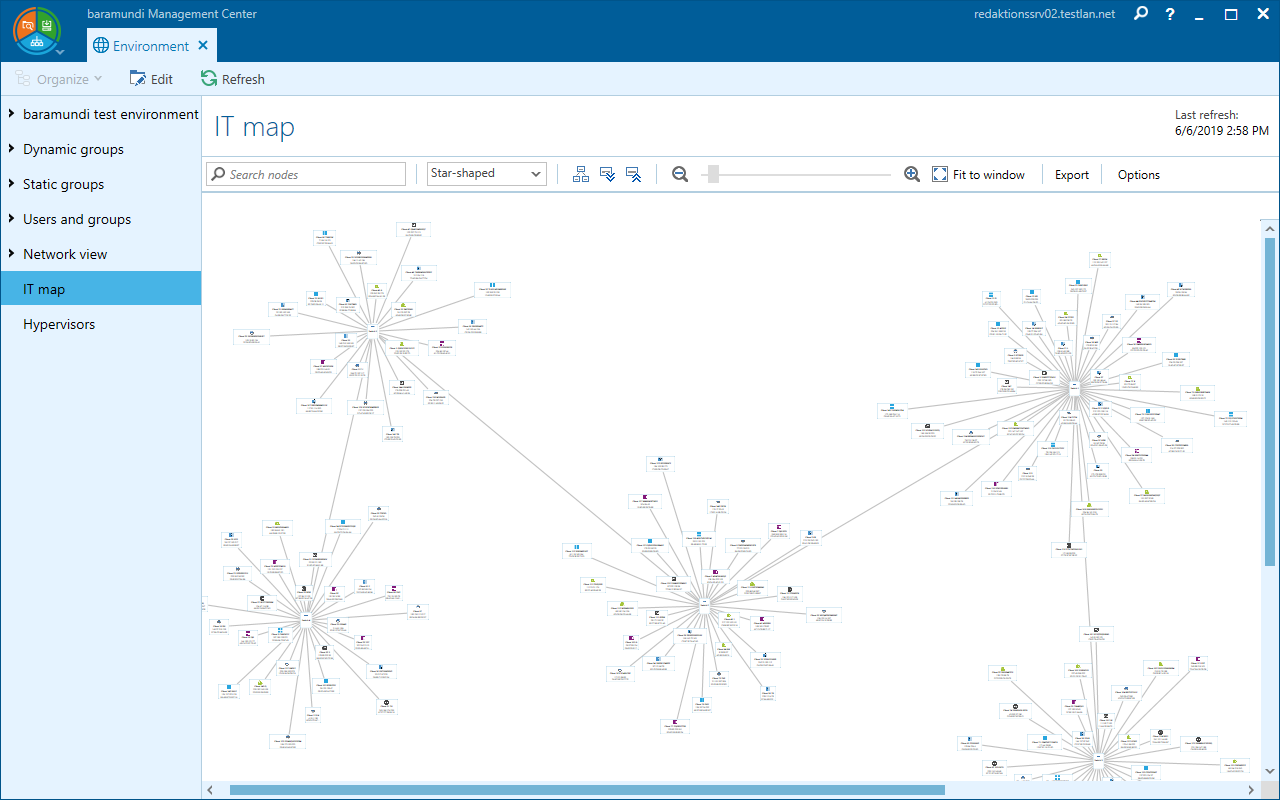

The Network Map shows the network devices (SNMP) and their connections in your environment. You determine the devices by means of a network scan, to be defined under Inventory > SNMP > Profile (Overview). The scan requires an SNMP profile in which you specify the IP ranges you want to scan.
Actions
|
Action |
Action |
|---|---|
|
Refresh |
Reload IT map with current data |
|
Hide/Show devices |
Hide or show connected devices of the selected switch |
|
Open Devices URL |
Open the URL opened on the device in the default browser |
Elements
|
Information |
Description |
|---|---|
|
Last update |
Date and time of the last view update |
|
Mode |
STP: Only STP is used STP & FDP: Only STP + FDB based mode is used |
|
Element |
Description |
|---|---|
|
Filter |
Filter by Hostname, IP and MAC |
|
Layout style |
Set structure for display: Circular or Star-shaped |
|
Reset Layout |
Rearrange elements |
|
Show/Hide all connected devices |
Show/Hide all connected devices |
|
Zoom |
Adjust the size of the view as required |
|
Fit to window |
Size the view to fit the window |
|
Export |
Export IT map in PDF, SVG or VSDX format |
|
Options |
Description |
|---|---|
|
Show ports |
Show on connection port to which the device is connected |
|
Show connection type |
Display connection type on connections FDB (Forwarding Database): stores the learned MAC addresses and the ports on which the MAC addresses were learned STP (Spanning Tree Protocol): prevents network loops, identifies an active connection between networks, and automatically blocks all other connections |
|
Show blocked connections |
Show blocked connections as dotted red line |
|
Show unmanaged devices |
Display unknown devices whose IP address was read out during an SNMP scan |
